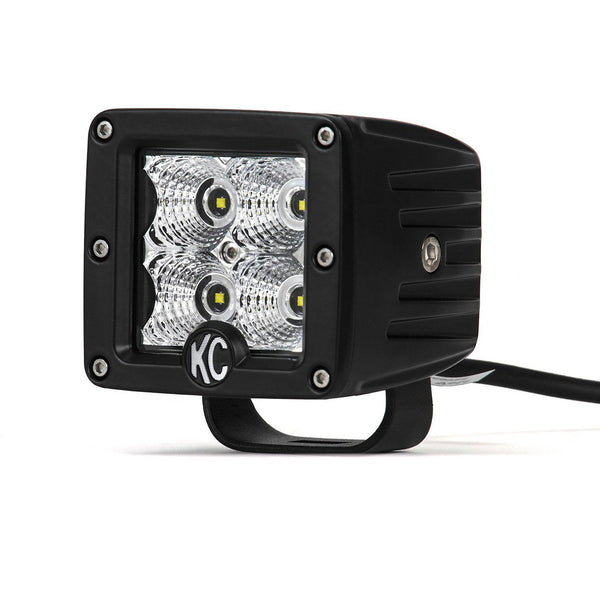

C3 3" Cube LED light Kit - Flood 12W

Part ID: K/C332

Sold Out

Product Details

OVERVIEW

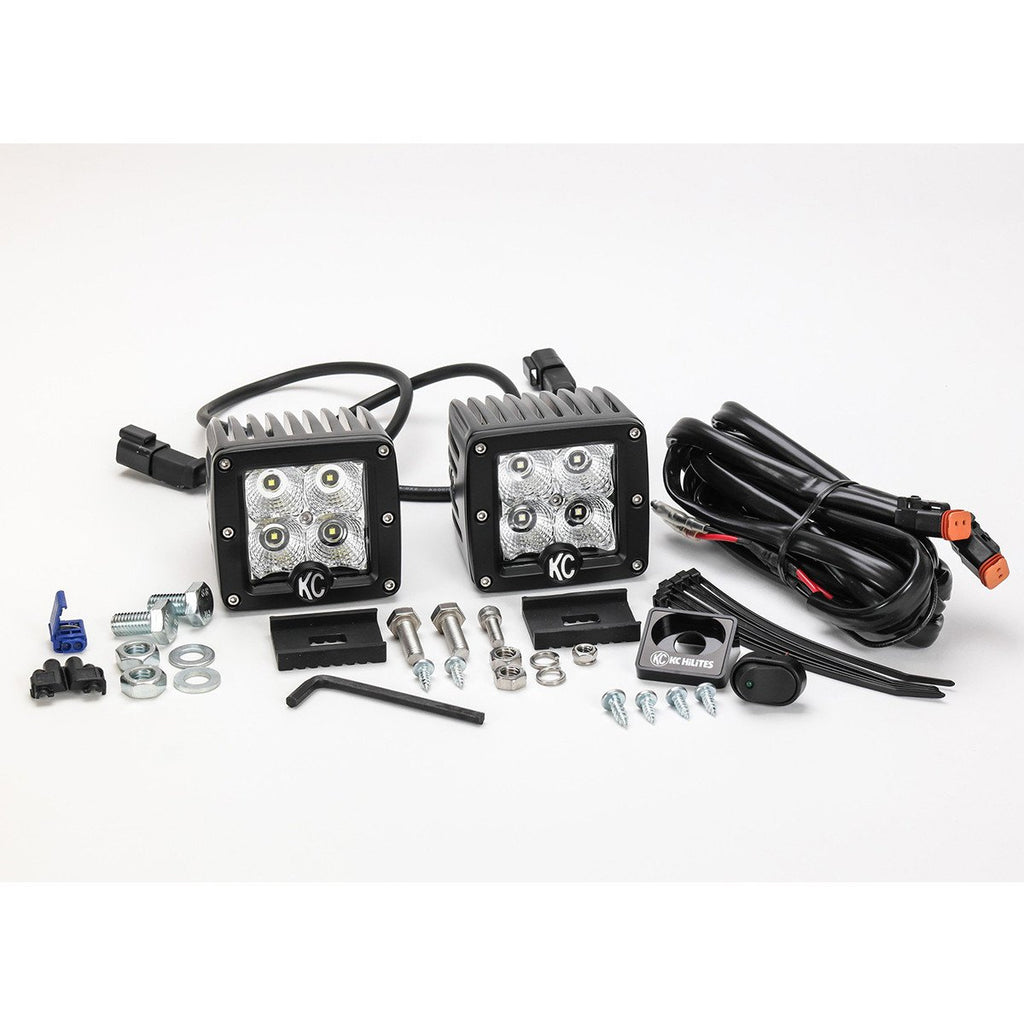

KC HiLiTES 3" C3 LED feature bright CREE LEDs in 8° Spot or 90° Flood beam patterns, inside an impact resistant die-cast aluminum design and durable Lexan lens. System includes: (2) C3 LED lights with brackets and complete wiring harness.

FEATURES
-3" 12W C-SERIES C3 LED lights
-Die-Cast Aluminum Housing
-Available in Spot or Flood Beam Patterns
-8° Spot or 90° Flood optics
-On-Board Thermal Management for Light Efficiency

LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 1,080 lm
-Lux @ 10 Meters: Spot- 380 lx, Flood- 55 lx
-Candela: Spot- 38,00 cd, Flood- 5,500 cd
-Beam Distance (meters): Spot- 395m, Flood- 148m

SPECIFICATIONS(PER LIGHT)
-Wattage: 12W
-LED Source: CREE XBD
-Color Temperature: 6000K
-Amp Draw: 1.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 3.22" x H - 3.42" x D - 3.14"

Parts Included with C-SERIES C3 Pair Packs
-(2) C3 LED Lights
-Deluxe Wiring Harness
-Die-Cast Mounting Brackets w/hardware

PERFORMANCE OUTPUT AND CLARITY
The C-Series LED C3 lights use a forward facing CREE LED design delivering a stout 1,080 Lumens of output with maximum power efficiency. They are perfect for front bumper, windshield, grille, and reverse light applications.

HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series LED C3 lights feature a die-cast aluminum housing, aluminum core PCBs with thermal management, and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.

SPOT OR FLOOD BEAM PATTERNS
When it comes to total road coverage, the C-Series LED C3 lights feature either spot or flood reflectors for maximum forward distance and increased peripheral illumination along road edges.

DESIGNED FOR DURABILITY
Off-road race tested, the C-Series LED was designed to handle the harshest environments. Featuring an IP67 rated housing with on-board Thermal Management for maximum light output and efficiency.
