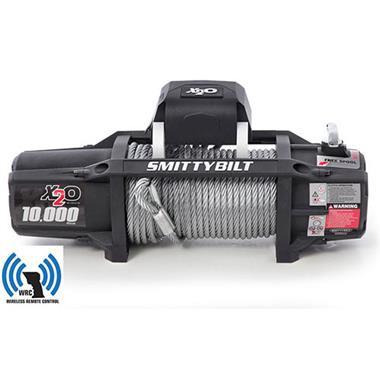

X2O-10K Waterproof Wireless Winch Gen2

Part ID: S/B97510

Sold Out

Product Details

Waterproofing: IP68 Rating
Rated Line Pull: 10,000Lbs (4,545kgs) Single Line
Motor: 6.6hp Series Wound
Control: Remote Switch, 12’ (3.7m) lead
Gear Train: 3-Stage Planetary
Gear Ratio: 218:1
Clutch: Sliding Ring Gear
Brake: Automatic Out-Of-Drum
Drum Size: Diameter 2.5”
Cable: 98.5’ 3/8” Diameter
Cable Type: Braided Steel Wire Rope
Fairlead: 4-Way Roller
Remote Control: Included
Integrated Wireless Remote
Recommended Battery: 650CCA Minimum for Winching
Battery Leads: 25mm2, 72”(1.83m)1
Finish: Textured Black
Weight: 99.0Lbs (45.0Kgs)
Mounting Bolt Pattern: 10.0” x 4.50”
Overall Dimensions: (L x W x H) 22.3” x 5.4” x 9.4”

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.

General Questions
- WHY IS THE SPACER IN THE KIT THAT I RECEIVED NOT THE SAME THICKNESS AS THE LIFT THAT I ORDERED?

  Sometimes, the spacer thickness is less then the advertised lift due to the motion ratio of your vehicle. Most lift kits are designed on the principle of motion ratio, so even though the spacer is small, it will give you a full amount of lift. The way this works is once you install the spacer, it will be changing the angle of the lower control arm, steepening the angle, and that will account for the additional lift, so once you install it you will see the full amount of lift height.

  HOW DO I DETERMINE WHICH KIT I NEED TO LEVEL MY VEHICLE?

  The ride height of each vehicle varies with each make and model. To level your vehicle, you need to first figure out the current height of our front and rear. Measure from the center axle to the top of the wheel well. Now subtract the lower measurement from the higher measurement and this number will tell you what lift kit to purchase.

  Example: If the front height is 18" and the rear height is 20". 20-18=2". So you would need a 2" front leveling kit to level out your vehicle.

  For more information read our Lift Kit 101 blog HERE.

  WHY AM I LIFTING MY TRUCK HIGHER IN THE FRONT?

  This has to do with the factory rake of your vehicle. The rear lift is higher than the front for factory models. So our full lifts kits allow you to level out your truck making it look much better.

  CAN I USE THIS KIT ON TOP OF ANOTHER SUSPENSION LIFT KIT?

  Our suspension lift kits are designed and tested to work with factory suspension components ONLY and should never be used on any vehicles with a suspension lift kit already installed. However, our suspension lift kits can be used in conjunction with a body lift.

  DO I NEED TO GET EXTENDED SHOCKS FOR YOUR KIT?

  SDT Leveling and Lift kits are designed to work with OE suspension components, so extended shocks are not required to get the kit installed and achieve your lift.

  However, vehicle manufacturers recommend replacing shocks or struts at 50,000 miles. So if your vehicle is past this, or getting close to, it may be in your best interest to replace them at the time of installation.

  In addition to this, while not required, extended length shocks will allow the suspension to articulate more and provide the most benefit from your new lift kit.

  AFTER INSTALLING YOUR KIT, WILL I HAVE ISSUES WITH BALL JOINTS POPPING OUT?

  Street Dirt Track kits are designed to work in conjunction with factory components. your ball joints will still function properly once the kit is installed
